Thermocouple Resistance Calibrators

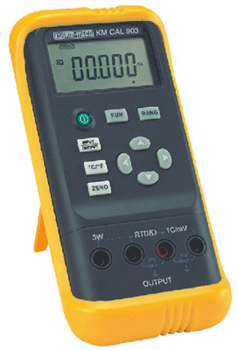

KM CAL 903
The new Kusam-Meco RTD Calibrator Model KM-CAL-903 is a high accuracy (0.05%) Calibrator. It has 5 digit LCD display with high stability. It can be used for calibrating Transmitters, RTD's, SCADA systems, Process Temperature controllers etc.
Technical Specification :
Display
:
5 Digit LCD Display.
Power
:
9V battery (ANSI/NEDA 1604A or IEC
6LR619 alkaline) or AC Power Adapter.
:
Approx. 20 hours under the condition of 10mA.
MAX. ALLOWABLE VOLTAGE
:
30 V
Operation Temperature Range
:
0-50 °C
Operation Humidity Range
:< 80% RH
Storeage Temperature Range
: < -10 °C - 55 °C
Storeage Humidity Range
: < 90% RH
Size
:
200 x 100 x 40mm (with Holster)
Weight
:
550g (with Holster)
Accessories
:
Operation Manual, Test lead CF-36
(probe with alligator clip)..
Safety
:
Certified as complaint to IEC1010 provision (safety standard issued to international electro technical commission.)
