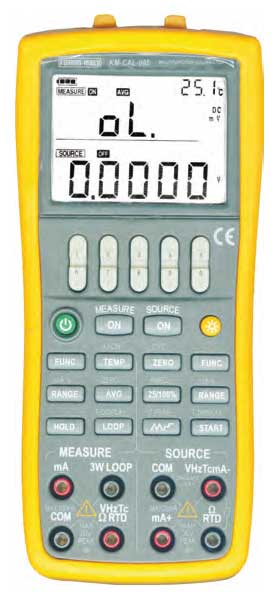

Multifunction Process Calibrator
KM CAL 905 / KM CAL 905A
KM-CAL-905A is without Pressure Function.
This multifunction Process Calibrator has high accuracy of ±0.02%. It has 5 digits dual display, Volts, RTD & Thermocouples and it works on 4 x 1.5AAA alkaline battery. Output range up to 500W about 1mA and 5kW about 1.1mA exciting current (for RTD calibration)and output for calibrating R, S, K, E, J, T, N, B type Thermocouple. It also give RTD, PT -100 & Cu 50
General Specifications :
• Accuracy : ± 0.02%
• Display : LCD double displaying :
68.0 x36.3mm
• Backlight : White LED backlight,
can set Back light ON Time 0-9000 S
• Operating Temperature and Humidity :
0 - 50 ºC, ≤ 80% RH ; 70% RH < 40 - 50 ºC
• Altitude : ≤ 2000m
• Storage Temperature and Humidity :
-25 to 60ºC, ≤ 90% RH
• Vibration Test : Randomly 2g , 5 ~ 500Hz
• Warm-up time : Testing under one meter boot- strap
warm-up time is 10 minutes
• Power supply : 4 X 1.5V AAA alkaline battery
• Dimension : 205 x 95 x 42 mm
• Weight : About 500g
Accessories :
Test leads, Fuse, User’s Manual, Carrying Case.
Optional Accessories :
Pressure modules
