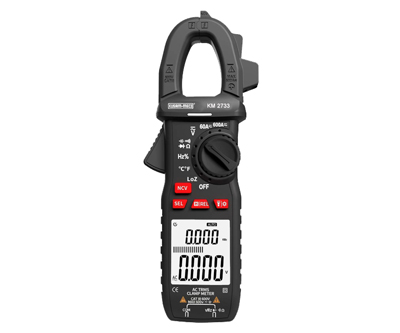

600A AC/DC True RMS Digital Clampmeter Model - KM 2733
Functions :
• Maximum input voltage between input socket and the earth: 600V RMS
• The measuring principle : Double integral A/D conversion
• Sampling time : about 3 times / second
• Display : 3-5/6 Digit 6000 Counts Backlight LCD display
• Jaw Opening : Max. 28mm
• Input polarity : Display “ - ”
• Range Selection : Auto ranging
• Over range indication : “OL” or “-OL”
• Inbuilt flashligh
• Data Hold Function
• Operating temperature : 0°C ~ 40°C (<80% RH)
• Storage temperature : -10°C ~ 50°C (<70% RH, Exclude batteries)
• Low battery indication.
• Auto power off : After 15 minutes.
• Power : 1.5V AAA
GENERAL SPECIFICATIONS :
• Sensing : True RMS
• Jaws Opening size : 26mm Max.
• Display : 3-5/6 digits 6000 counts
• Update Rate : 5 per second nominal
• Polarity : Automatic
• Operating Temperature : 0ºC to 40ºC
• Altitude : Operating below 2000m
