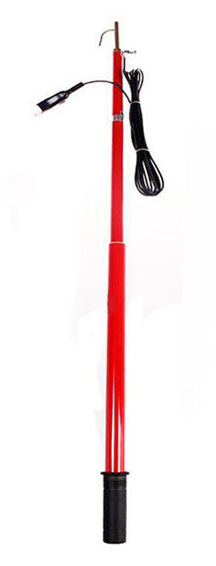

Hook type highly insulated FRP Telescopic Earth / Discharge Rod
Model KM-HKDR-66KV
Technical Specification
• Material Of Rod : FRP.
• Process : Automatic Protrusion Plant.
• Surface : Smooth and Glossy.
• Design : Telescopic Type.
• Locking : Auto fit during extracts.
• Total Section : 04 Section
• Assembled Length : Extracted - 6’ 10” Retracted - 2’ 3”
• H.V.Test : 250 KV
• Top Section Dia : 20 mm.
• Bottom Section Dia : 38 mm.
• Earthing Clamp : Crocodile clamp.
• Earthing Cable : 4 sq. mm ; 5 meters length.
• Accessories : Carrying Case.
