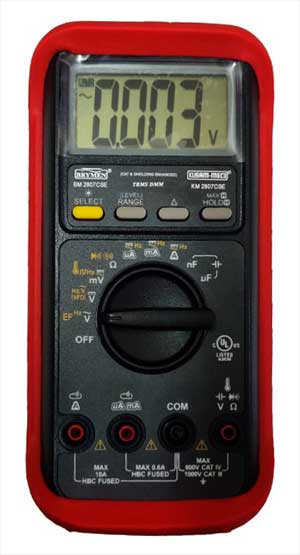

TRMS Enhanced Practical Multimeter

General Specifications :
• Sensing : True RMS sensing
• Display : 3-5/6 digits 6000 counts
• Update Rate : 5 per second nominal
• Operating Temperature : -10 °C to 50 °C
• Relative Humidity : Maximum relative humidity 80% for temperature up to 31 °C decreasing linearly to 50% relative humidity at 50 °C
• Altitude : Operating below 2000m
• Storage Temperature: -20 °C to 60 °C, <80% R.H. (with battery removed)
• Temperature Coefficient : Nominal 0.15 x (specified accuracy) / °C @ (-10 °C ~ 18 °C or 28 °C ~ 50 °C), or otherwise specified
• Low Battery : Below approx. 2.5V
• Power Supply : 1.5V AAA Size battery X 2
• Power Consumption (typical) : 3.2 mA
• APO Consumption (typical) : 10A
• APO Timing : Idle for approx. 30 minutes
• Accessories : Test lead set, User's manual, Banana-plug type-K thermocouple
• Optional purchase accessories : BKB32 banana-plug to type-K socket plug adaptor
