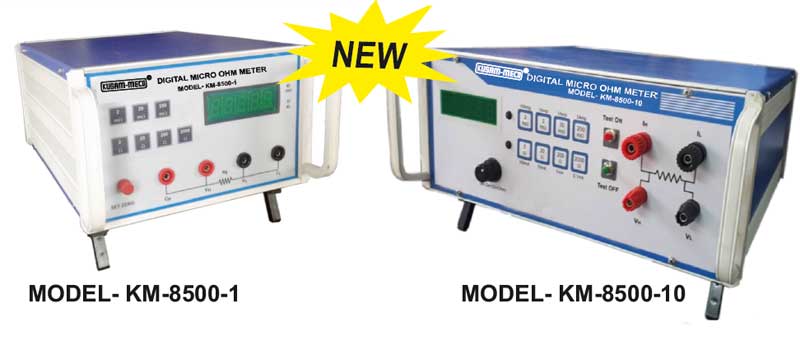

Digital Ohm Micrometer
Model KM-8500-1 / KM-8500-10
Features :
• Four Terminal Measurement eliminates lead resistance errors.
• Highly stable Current Source 1A/ 10A for accurate and stable measurements
• Digital Display 4 ½ digit.
• Resolution 0.1 Micro Ohm in 2 milli Ohm range
• Protection against back EMF for high inductive loads.
• Dimension :
Approx.230 x 305 x 150 mm (KM-8500-1A)
Approx.360 x 305 x 150 mm (KM-8500-10A)
• Weight :
Approx.7kg (KM-8500-1A)
Approx.12kg (KM-8500-10A)
