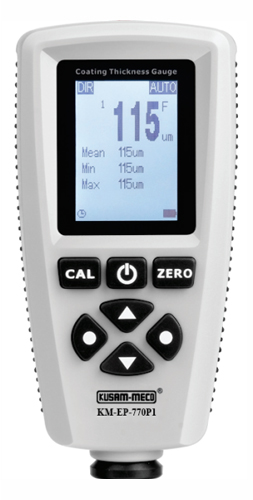

Digital Coating Thickness Gauge For Ferrous & Non-Ferrous Base Material

Digital Coating Thickness

Model - KM-EP-770p1

Special Features :
• 128 * 128 dot matrix LCD display, standard menu operations
Two measure mode : Single & continuous
Two group mode : direct (DIR) & General(GEN), readings will be lost when power off in direct mode, & not be lost in general mode. Readings can be stored for each group.
• Zero point calibration & multi-point calibration (up to 4 points ) for each group.
• User can recall, delete specified readings, or delete group readings.
Statistics display : mean, minimum, maximum & standard deviation.
Three probe mode : auto, magnetic & eddy current.
• User can set high or low limit alarm for each group.
• Power off automatically.
• USB interface to data transmission.
• Low battery & Error indication


General Specifications :
Probe : Probe F ; Probe N
Measuring Principle : Magnetic induction; Eddy Currents
Measuring range : 0 to 2000mm (0 to 78.7mils)
Accuracy : ±(2.5% + 1mm); ±(2.5% + 0.039 mils)
Resolution : 0mm ~ 99.9mm(0.1mm); 100mm ~ 999mm(1mm) >1000mm(0.01mm)
Calibration : One point to four point calibration, Zero point calibration
Data Group : One direct group (readings not be stored to memory) Four general groups (max. 320 readings)
NOTE : Each group have individual statistics, alarm limit settings & calibration
Statistics : No. of readings, mean, minimum, maximum & standard deviation
Units : mm, mm, mils
