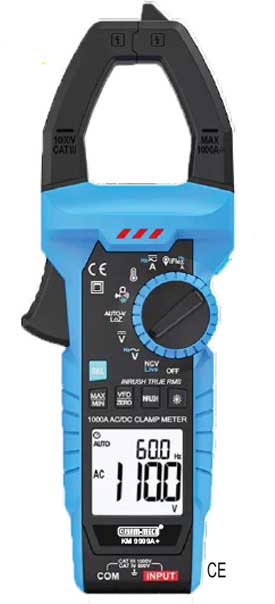

Digital Clampmeter With Inrush Current
MODEL - KM 9999A+
Features
• Autoranging
• Non-Contact AC Voltage Detection
• Autoranging
• Hold & VFD Function
• MAX, MIN Function
• Inrush Current Measurement
• Live wire Identification
• Clear the data function
• Reading hold mode
• AC/DC Voltage
• Inrush Current Measurement
• Non-Contact AC Voltage Detection
• Auto Power Off after 10 minutes
• Low battery indication
• Frequency measurement of AC Voltage & AC Current input signal.
• Variable Frequency Drive Measurement (V/Hz)
• Automatic shutdown
• Negative electrode
• Diode & Continuity Test
General Specifications :
• Test parameters : L / Q, C / D, R / Q, / Z. / ?, C / R, L / R
• Sensing : True RMS sensing
• Display : 3-5/6 Digit 5999 counts backlight LCD display
• Jaw Opening : 42 mm Max.
• Length of iFlex clamp : 1.8m
• Size of iFlex clamp : 7.5mm
• Full-range overload protection voltage : 1000V
• Automatic range
• Operation altitude : Max. 2000m
• The maximum input voltage at com and input end : AC 750V/DC 1000V
• Overrange display : OL or OL
~Sampling time: About 3 time/second
~Working Temperature : 0 °C~40 °C
~Storage Temperature : -10 °C~50 °C
• Power : 3 x l.5V AAA battery.
• Dimension : Approx. 250(L)x85(W)x45(H)mm.
• Weight : Approx. 368 gm (excluding battery)
• ACCESSORIES : Test leads, User's manual,
Battery, Thermocouple & Carrying case
