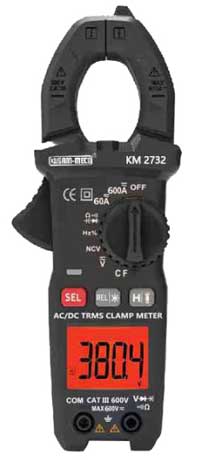

600A AC / DC TRMS Digital Clampmeter
MODEL - KM 2732
General Specifications :
• Automatic selection of measuring function & range.
• Full range overload protection
• The maximum allowable voltage between the measuring terminal & the ground is 600VDC or 600VAC
• Working height : Max 2000m
• Display : 3-5/6 Digit 6000 Counts Backlight LCD display
• Jaw Opening : Max. 26mm
• Polarity Indication : Automatic indicator "-" indicates negative polarity.
• Hyperview display : 'OL' or '-OL'.
• Sampling time : about 3 times / second
• Unit display : with function, unit display of electricity.
• Operating temperature : 0 °C ~ 40 °C
• Storage temperature : -10 °C ~ 50 °C
• Auto power off : After 15 minutes.
• Power : 1.5V AAA x 2 battery.
• Dimension : Approx.185(L) x 71(W) x 35(H)mm.
• Weight : Approx. 200 gm (Including battery)
• ACCESSORIES : Test leads (pair), User's manual, Battery, Bead type Thermocouple upto 250°C & Carrying case .
