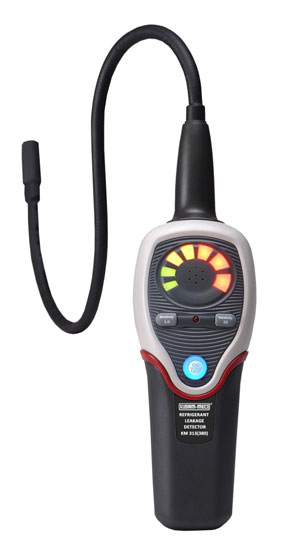

Refrigerant Leakage Detector

DC handheld resistance tester


KM 313


Features :
Refrigerant Leakage Detector is the perfect tool for maintaining the air-condition or a cooling system with compressor and Refrigerant. This unit used newly developed semi-conductor sensor which is extremely sensitive to variety of general used Refrigerant
• Microprocessor Control with advanced digital signal processing.
• Multi color visual display.
• High-Low Leak Sensitivity Selector
• Low Battery Indication.
• Semiconductor Gas Sensor
• Detection of R134a, R410A, R407C, R22...Freon gas.
• Carrying case included.
• 15.5”(40CM) Flexible Stainless Probe
• Reference Leak Source Included
• Ambient Concentration Reset

Specifications :
• Heated Semiconductor Gas Sensor
• High-Low Leak Sensitivity Selector
• 7 LED Tri-colored Visual Leak Level Indicator
• Variable Intensity Audible Alarm
• Ambient Concentration Reset
• 15.5”(40CM) Flexible Stainless Probe
• Detection of R134a, R404A, R410A, R407C, R22, R502, R600 A ... Refrigerants Gas
• Sensitivity As Small 6gr/year
• Accordance With SAE J1627, CE Design
• Low Battery Indication
• Reference Leak Source Included
• Hand Carrying case Included
• Operating Temperature: 0 to 40°C(32 to 104°F)
• Size: 21.7 x 6.6 x 5.6 cm
• Weight: Approx. 400g(with batteries)
• Power Source: AA Size Alkaline Batteries x 4
• Battery Life: Approx. 40hrs
