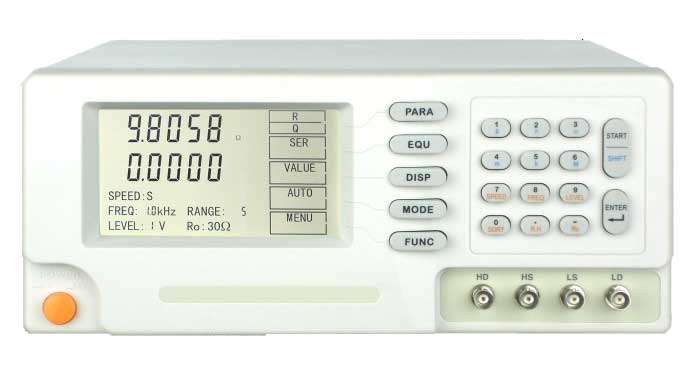

LCR meter
MODEL - KM-5812
Features
• 100Hz ~ 100kHz, eight typical test frequency points
• Special large white back light LCD display screen
• 0.1V, 0.3V, 1.0V three typical test level
• 30?,100? two signal source output impedance,
• 4 bins comparator and bin counter
• RS232C and HANDLE interfaces
Electrical Specifications :
• Test parameters : L / Q, C / D, R / Q, / Z. / ?, C / R, L / R
• Accuracy : 0.1%
• Test frequency : 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 30kHz, 60kHz, 100kHz
• Test level : 0.1Vrms, 0.3Vrms and 1 Vrms
• Output impedance : 30? or 100?
• Measurement range :
C 0.001pF ~ 99999?F
L 0.001?H ~ 99999H
D 0.0001 ~ 9.9999
Q 0.0001~ 9999.9
?% -99.99% ~ 99.99%
• Measurement speed (times / sec.) : Slow : 2 Medium : 8 Fast : 16
• Equivalent circuit : Series / parallel
• Ranging mode : Auto / hold
• Trigger mode : Internal / external, manual
• Correction functions : Open / short and sweep corrections
• Display mode : Direct, ?ABS, ?%
• Display digits Primary and secondary display : 5 digits
• Comparator functions NG, P1, P2, P3, 4 bins
• Interface RS232C, HANDLER
• LCD : Special large white back light LCD display screen
• Power supply :110 ~ 127VAC 10% / 220 ~ 240VAC
10%, 50Hz 2Hz / 60Hz 2Hz
• Dimensions : 320(W) x 140(H) x 360(D) mm
• Weight : Approx. 3.5kg
