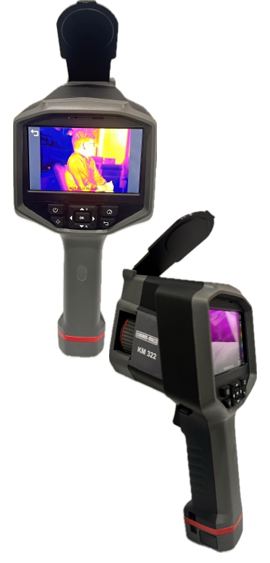

Infrared Detector Model- KM 321 / KM 322
Model- KM 321 / KM 322
Specification:
| Model | KM 321 | KM 322 |
|---|---|---|
| IR Resolution | 384×288 |
640×480 |
Focal Length |
15mm/F1.0 |
25mm/F1.0 |
Pixel Size |
17μm |
|
Thermal Sensitivity/NETD |
≤ 50mK@25℃ |
|
Detector Type |
Uncooled microbolometer |
|
Digital Zoom |
1x-8x (integer) |
|
Image Frequency |
30Hz |
|
Focus Mode |
Manual focus |
|
