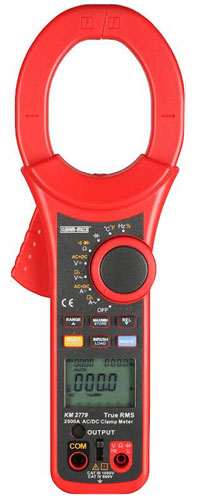

2500 Digital Clamp Meters
KM 2779
Features :
KM 2779 digital clamp meters, ensures stable performance, safety, and
reliability for measuring up to 2500A AC/DC current. It is designed with
over-load protection for all ranges & is perfect for all professionals
measuring currents up to 2500A.
• 6000 Counts Display
• Auto ranging & Data hold function
• Diode Test / Continuity buzzer
• Max/Min function
• Low battery indication
• Jaw opening : 63mm
• True RMS/Duty cycle
• AC+DC function
• Low Pas Filter/ Inrush current
• Relative mode
• I-Out function
• 61 Analog bar graph
• Data storage 1000
• CAT III 1000V; CAT IV 600V
Specifications :
• AC current (A) Range : 2500A Accuracy: ±(1.5%+5)
• DC current (A) Range : 2500A Accuracy: ±(1.5%+5)
• AC Voltage (V) Range : 1000V Accuracy: ±(1%+3)
• DC Voltage (V) Range : 1000V Accuracy: ±(0.5%+2)
• Resistance (Ω) Range : 60MΩ Accuracy: ±(1%+2)
• Capacitance (F) Range : 60mF Accuracy: ±(3%+5)
• Temperature Range :
-40 ℃~ 1000 °C Accuracy: ±(1%+10)
-40 F~ 1832 °F Accuracy: ±(1%+18)
General Specifications :
• Power 9V battery (6F22)
• Display 43mm x 30mm
• Product net weight 726gms Approx.
• Product size (W x H x D) 298mm x 107mm x 47mm
• Standard accessories Thermocouple, Manual Test leads, Output cable,
