1000 A AC/DC True RMS Digital Clampmeter

DC handheld resistance tester

KM 4002

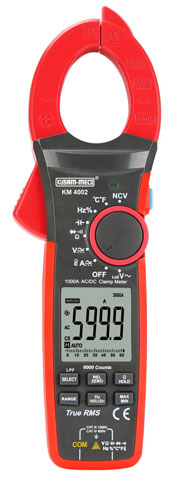

KM-4002-1000A True RMS Digital Clamp Meter are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating and certified by CE/ETL. KM-4002 come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. The KM-4002 also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.

General Specifications :
• True RMS
• Flashlight
• NCV (audible/visual alarm)
• Data hold/backlight
• Max/Min/ relative mode
• Diode/ Continuity test
• Inrush current
• Optional Flex Clamp (3000A) (KM-CCT3K).
• 31 Analog Bar Graph
• 6000 Counts display
• Jaw opening: 42mm
• Zero Mode Function
• CAT lll 1000; CAT IV 600V

Specifications :
AC current (A)( 40Hz~400Hz) Range : 1000A Accuracy: ±(2%+5)
DC current (A) Range : 1000A Accuracy: ±(2%+5)
Inrush current (A)Range : 1000A Accuracy: ±(10%+10)
AC Voltage (V) (40Hz~400Hz) Range : 1000V Accuracy: ±(1.2%+3)
DC Voltage (V) Range : 1000V Accuracy: ±(0.5%+5)
Low pass filter (LPF ACV) Range : 1000V Accuracy: ±(2%+5)
LoZ ACV Range : 1000V Accuracy: ±(2%+5)
Resistance (Ω) Range : 60MΩ Accuracy: ±(1%+2)
Capacitance (F) Range : 60mF Accuracy: ±(4%+5)
Temperature Range :
-40 ℃~ 1000 C Accuracy: ±(1%+2) Range : -40℃~1832°F Accuracy: ±(1%+4)
Low voltage frequency (Hz) Range : 10Hz~1MHz Accuracy: ±(0.1%+3)
Duty cycle(%) Range : 10%~90% Accuracy: ±(2.6%+7)

General Characteristics :
Power 1.5V battery x 3
Display 43mm x 45mm
Weight 420 gms Approx.
Dimension (W x H x D) 272mm x 81mm x 43.5mm
Standard Accessories Test leads, batteries, point contact temperature probe, Manual
