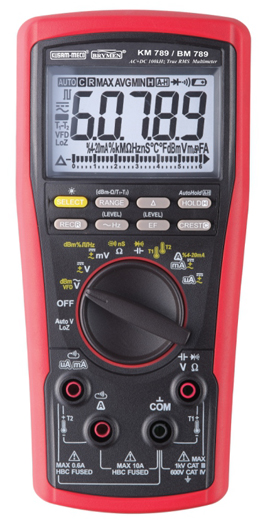

AC / DC 100 kHz TRMS Multimeter

TRMS Multimeter

MODEL - KM 789

• Auto Hold
• BeepLit™ Continuity
• Record MAX, MIN, & AVG readings
• Crest (Instantaneous Peak hold) MAX & MIN readings
• Relative Zero mode
• Data Hold
• Backlighted LCD display
• BeepJack™ audible & visible input warning
• %4-20mA loop
• current readings
• T1-T2 differential temperature readings
• dBm readings

General Specification
Sensing : AC and AC+DC True RMS
Display : 4-5/6 digits 60,000 counts.
Polarity : Automatic
Update Rate: 4-5/6 digits: Max 5 per second nominal 31 Segment Bar-graph: 50 per second max Operating
Temperature: -20ºC to 55ºC continuous operating
(except on A function, see Electrical Specifications below for more details) Relative
Humidity: Maximum relative humidity 80% for temperature up to 31ºC decreasing linearly to 50% relative humidity at 55 °C
Storage Temperature: -20 °C to 60 °C, < 80% R.H. (with battery removed)
Altitude: Operating below 2000m
Temperature Coefficient: nominal 0.10 x (specified accuracy)/ ºC @ (-20ºC ~ 18ºC or 28ºC ~ 55ºC), or otherwise specified
Power Consumption: 10mA typical for AC & AC+DC Voltage/Current functions; 8mA typical for other functions
Low Battery: Below approx. 3.7V
APO Timing: Idle for 15 minutes
APO Consumption: 15mA typical.
Power Supply: 1.5V AAA Alkaline battery x 3
Accessories: Test lead pair, User's manual, Bkp60 banana plug K-type thermocouple x 1
Optional Accessories: BKB32 banana plug to type-K socket plug adaptor,BMH-02 magnetic hanger strap
Dimension: L193mm X W89mm X H51mm
Weight: Approx. 420 gm
