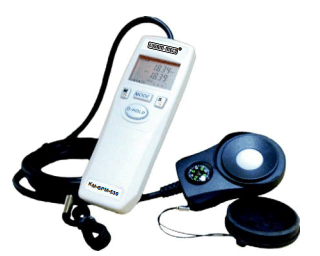

Digital Solar Power Meter

Model KM SPM 530


Features
Solar power measurement with Orientation and Tilt angle
• Easy measurement for rate of daylight penetration
• Auto change for measuring range
• Auto power off with disable function
• Instantaneous display Avg/Min/Max values
• 20 points memory
• Socket of tripod mounting
• Magnetic mount
• Backlit LCD and 4 digits triple display

General Specifications
Display : Back-lighted LCD & 4 digits triple display.
Sensor : High sensitive silicon photodiode
Measuring Range : 0 ~ 2000W/m2 (0 ~ 634 BTU (ft2 * h) .
Spectral Response : 400~1100nm
Operating Temperature : 0~50°C (32~122°F)
Relative Humidity : Maximum 85%R.H. at 60°C decreasing linearly to 80% R.H. at 50°C
Storage Temperature : --10~60°C (14~140°F)
Power Supply : 9V Battery
Angular Accuracy : Cosine calibration < 5% (angle < 60°)
Low Battery Indication.
Accuracy : at 25°C 60%RH
Dimension : 140 x 49 x 29mm For Main Instrument & 83 x 54 x 26mm For Sensor Probe.
Weight : approx 210 g without battery.
