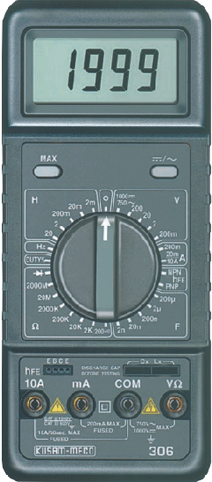

3 ½ DIGIT 1999 Counts Digital Multimeter + LCR Meter, MODEL 306, Mumbai, India

3 ½ DIGIT 1999 Counts Digital Multimeter + LCR Meter

MODEL - 306 (13 Functions 43 Ranges)

Special Features
• Professional Grade Rugged DMM + LCR Meter
• Most rugged, Easy to use hand held meter
• MAX HOLD facility
• Auto Zero Mode
• Auto range on Frequency Range
• Low battery indication
• Transistor hFE test
• Diode Test, Continuity Test & Duty Cycle

General Specifications
Sensing : Average Sensing
Basic Accuracy : ± 0.5%
Display : 3½ digit LCD display (1999 Counts)
Digit Size : 18mm(H)
Low Battery Indication : The " " is displayed when the battery voltage drops below the operating level.
Over range Indication : ‘OL’ or ‘-OL’ is displayed.
Measurement rate : 2.5 times per second, nominal
Operating Temperature : 0°C ~ 40°C at < 70% R.H.
Storage Temperature : -20°C to 60°C, 0 ~ 80% R.H. With battery removed from meter.
Power : Single, Standard 9V battery.
Dimension : 200(H) x 90(W) x 40(D)
Weight : Approx. 400g. (Including battery)
