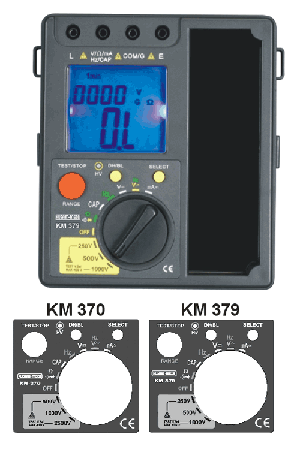

3¾ Digit Digital Insulation Resistance Tester with multimeter functions

MODEL KM 370 / KM379

Special Features

• Digital MΩ Hitester & Digital multimeter.
• Overlod Protection
• The meter can display actual insulation test voltage.
• LED light is used to indicate high voltage output status
• Measures Insulation Resistance & AC & DC Voltage
• Backlight , function characters indication
• Auto power off
• Low battery indication

General Specification

Basic Accuracy : ±(0.5%rdg + 5dgts)
Display : 3¾ digit Max. 3999 Counts liquid crystal display
Sampling Rate : 2 times per second
Short Circuit : 1.5mA
Measurement time : ½/10min
Auto range : "OL" will be displayed for overload
Operating Temperature : 0 °C - 40 °C, < 75%R.H.
Storage Temperature : -10 °C - 60 °C, < 80%R.H.
Maximum Power Consumption : 4.5W
Minimum Power Consumption : 18mW
Power : AA 1.5V battery x 6
Dimension : 170(L) x 156(W) x 64(H)mm
Weight : Approx. 650g. Including battery.
