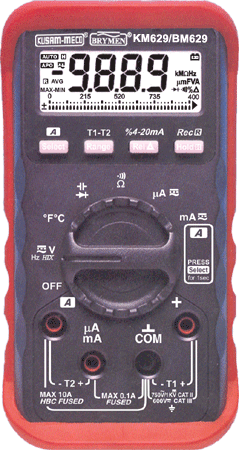

Digital Multimeter with Harmonics Index Measurement

MODEL - KM 629 (11 functions 40 ranges)

Special Features
• Harmonics Index Measurement,
• T1- T2 Temperature measurement
• 4mA-20mA loop Current Measurement
• Auto-ranging record Max, Min, Max-Min, Avg
• Auto-ranging relative zero mode
• 42 Segments Bar Graph
• Data Hold
• Auto power off Function

General Specifications
Sensing : True RMS
Basic Accuracy: ±(0.15%rdg + 3dgts)
Display : 4 digits 9999 counts LCD
Polarity : Automatic
Update Rate : Data: 4 per second nominal; 42 Segments
Bar graph : 20 per second max
Low Battery : Below approx. 7.2VDC
Storage Temperature : -20°C to 55°C, 0-80% R.H. (with battery removed)
Temperature Coefficient : Nominal 0.15 x (specified accuracy)/
  °C @ 0°C -18°C or 28°C -40°C
Power Supply :Single 9V battery
APO Timing : Idle for approx. 17 minutes
APO Consumption :30µA Typical
Power Consumption 3.5 mA Typical
Dimension : 160(L)x82(W)x48(H)mm (with holster)
Weight : Approx. 345gm.(with holster)
